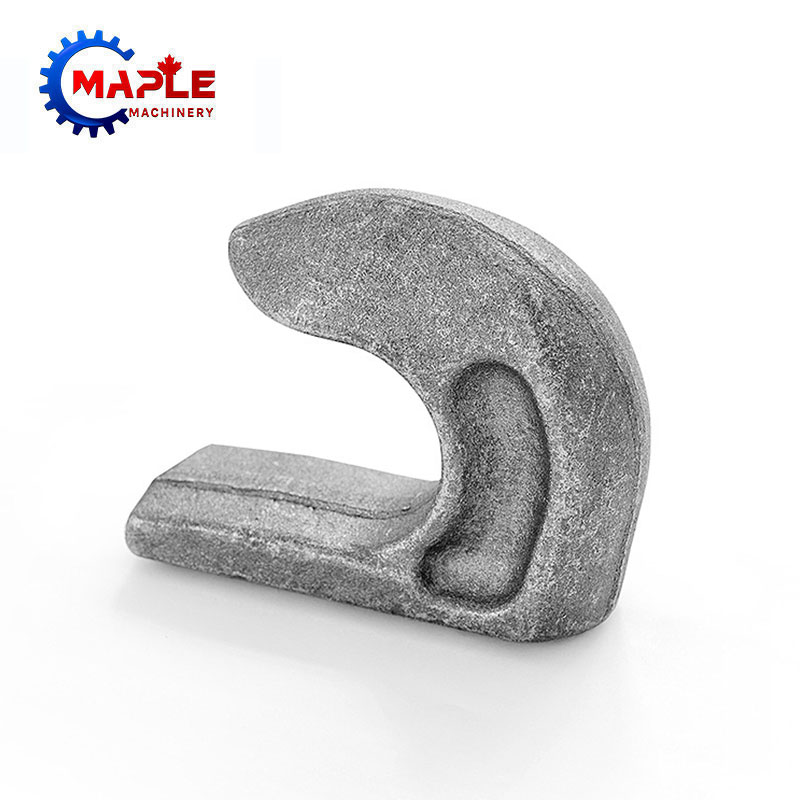

Recycling Industry Stainless Steel Forging Parts, such as joints, elbows, tees, joints, sockets, bushings, etc., are made of bar, forged or investment casting according to the design and size of the parts. Threaded stainless steel pipe fittings are commonly used in applications such as hydraulic, hydrodynamic, pneumatic, domestic water, fire fighting and industrial cooling water systems. Heavy-duty fittings can withstand good pressure and resist corrosion
Product Parameter (Specification)
Item |
Recycling Industry Stainless Steel Forging Parts |
Roughness |
Ra 1.6 |
Tolerance |
±0.01mm |
Material |
Alloy Steel |
Certification |
ISO 9001:2015 |
Weight |
0.01-60KG |
Machining |
CNC |
Heat Treatment |
Quenching & Tempering |
Inspection |
MT/UT/X-Ray |
Lead Time |
30 Days |
Package |
Plywood Case |
Method |
Closed Die Forging |
Capacity |
50000 Pcs / Month |
Origin |
Ningbo, China |
Maple’s Services for Recycling Industry
Recycling Industry Stainless Steel Forging Parts with very high dimensional accuracy and higher productivity require less or no post-processing. Maple machinery closed die forging presses offer precise high speed performance, providing optimal pressure control for the production of a wide range of forging products. Depending on the type of part specification and planned productivity, Maple machinery can tailor the best closed die forging solution to meet the specific application.
Supporting Service for Recycling Industry parts
◉ As mentioned above, in order to work in adverse conditions, the performance of the Recycling Industry Stainless Steel Forging Parts must be excellent. Therefore, it’s not enough to only produce raw castings or forgings, but also need heat treatment, machining, surface treatment, NDT testing, etc.
◉ Heat treatment: heat treatment is the critical step to improve the mechanical properties of the workpiece. We can formulate the process according to the strength requirements of the parts, and improve the mechanical properties of the parts such as hardness, yield strength, tensile strength and elongation by heat treatment
◉ Machining: we have our own machine shop, and can complete almost all machining requirements with advanced equipment.
◉ Surface treatment: the purpose of surface treatment is to make parts work in adverse environment. Zinc plating can prevent parts from rusting; Nickel plating can enhance the wear resistance and corrosion resistance of parts; Phosphating can prevent parts from corrosion…
◉ Non-destructive testing (NDT): NDT is the last and most important step. Maple will NDT the parts to ensure that there are no surface defects (such as cracks, sand holes, blow holes) and no internal defects (shrinkage and slag) on the delivered parts.
Common Material for Agricultural Machinery
We have the ability to manufacture all steel standard materials as well as special materials. The following are our common materials for manufacturing Recycling Industry Stainless Steel Forging Partss :
Carbon Steel:1015, 1020, 1035, 1045, 20Mn, 25Mn, A570.GrA, SJ355, C45…
Alloy Steel:4130, 4135, 4140, 4340, 8620, 8640, 20CrMo, 42CrMo4, 34CrNiMo6, 25CrMo…
Stainless steel:304, 304L, 316, 316L, 410, 416, CF8, CF8M, PH17-4, CK20…
Gray Iron:GG-15, GG-20, GG-25, Class 20B, Class 25B, Class 30B, GJL-250, GJL-300…
Ductile Iron:GGG-40, GGG-50, 60-40-18, 65-45-12, 70-50-05, 80-55-06 QT500-7, QT400-18, QT700-2…
High Chromium cast iron:15%Cr-Mo-HC, 20%Cr-Mo-LC, 25%Cr…
Aluminum:AlSi7Mg, AlSi12, AlSi10Mg, A356, A360…
High Manganese steel: X120Mn12, Mn12, Mn13…
The Parts We Supplying for the Recycling Industry
We have manufactured a wide range of Recycling Industry Stainless Steel Forging Parts. The following are typical products:Valve joint, Ball valve body, Gate valve body, Choke valve body, Beer valve body,Purification water brass,Hybrid valve, ....
Why Closed Die Forging
Compared with casting, forging has its special advantages:
1. In the case of the same material, the mechanical properties of forgings are better than those of castings.
2. The forgings strength is higher and the fatigue resistance is stronger.
3. The forgings has better compactness.
4. There are no internal defects and surface defects.
5. Fast production speed, high efficiency, suitable for mass production of products.
6. The product quality is stable.
