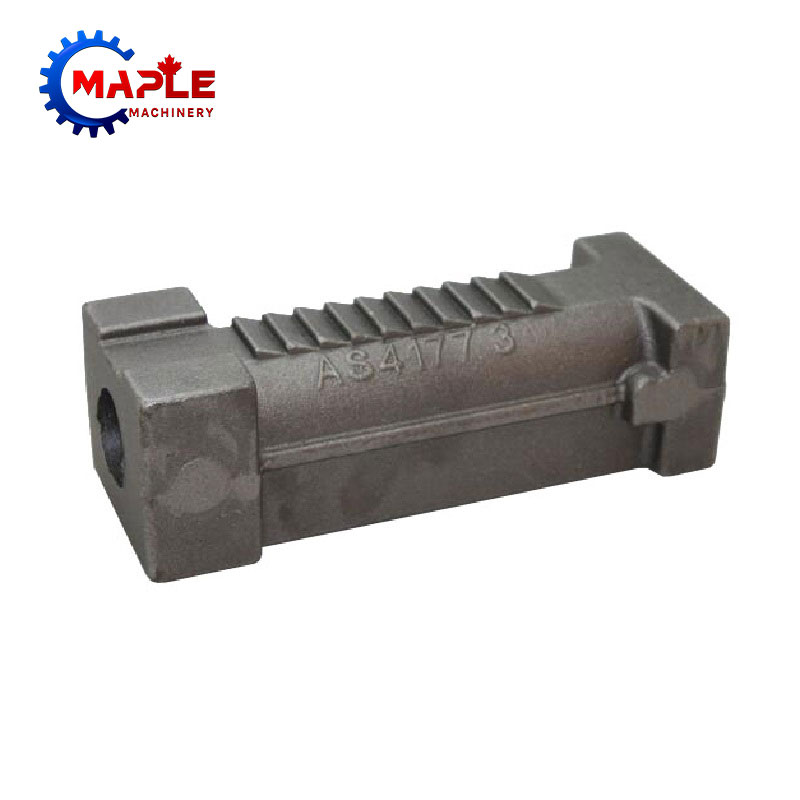

Off Highway Industry Iron Sand Casting Parts
1.Product Introduction
◉ Off highway industry have high requirements for the mechanical properties of castings and forgings, and the dimensional tolerance is also an important factor in the working process. We work with end users to develop Off Highway Industry Iron Sand Casting Parts for all types of components used in the off highway industry, and can quickly generate prototypes and production volumes.
◉ As an ISO 9001 certified company, we provide our railway customers with fast delivery cycle, high level of safety, reliability and maintainability, minimize downtime and withstand the worst wear environment.
2.Product Parameter (Specification)
Item |
Off Highway Industry Iron Sand Casting Parts |
Roughness |
Ra 1.6 |
Tolerance |
±0.01mm |
Material |
Casting Steel/Casting Iron |
Certification |
ISO 9001:2015 |
Weight |
0.01-5000KG |
Machining |
CNC |
Heat Treatment |
Quenching & Tempering |
Inspection |
MT/UT/X-Ray |
Lead Time |
30 Days |
Package |
Plywood Case |
Method |
Sand Casting |
Capacity |
50000 Pcs / Month |
Origin |
Ningbo, China |
3. Maple’s Servicesfor Off Highway Industry
◉ Maple Machinery enriches its manufacturing service network by foraying into the Off Highway Industry. We are proud of our long-term cooperation with leading companies, and our products and sales are at the top of the industry. We have continuously challenged ourselves and repeatedly made improvements to stay ahead of our competition. We manufacture Off Highway Industry Iron Sand Casting Parts like Coupling components, Centre plates, Bearing brackets, Rail wheels, Wheel hub, Base plate, Axle boxes, Yokes, Pedestals, Hinges, Tie plates, Side jaw clip, and Joint bar.
◉ The railway sector provides a crucial network for transport and distribution. It needs cost-effective and long-lasting equipment that is dependable for the range of applications. The railways, from freight to passenger, need different castings for various applications. Maple Machinery carries extensive experience to create steel castings and iron castings in varying sizes, shapes, and materials that are precise, strong, and durable. We manufacture a wide range of castings and forgings for railway infrastructure and transportation equipment.
4.Supporting Service for Off Highway Industry parts
◉ As mentioned above, in order to work in adverse conditions, the performance of the Off Highway Industry Iron Sand Casting Parts must be excellent. Therefore, it’s not enough to only produce raw castings or forgings, but also need heat treatment, machining, surface treatment, NDT testing, etc.
◉ Heat treatment: heat treatment is the critical step to improve the mechanical properties of the workpiece. We can formulate the process according to the strength requirements of the parts, and improve the mechanical properties of the parts such as hardness, yield strength, tensile strength and elongation by heat treatment
◉ Machining: we have our own machine shop, and can complete almost all machining requirements with advanced equipment.
◉ Surface treatment: the purpose of surface treatment is to make parts work in adverse environment. Zinc plating can prevent parts from rusting; Nickel plating can enhance the wear resistance and corrosion resistance of parts; Phosphating can prevent parts from corrosion…
◉ Non-destructive testing (NDT): NDT is the last and most important step. Maple will NDT the parts to ensure that there are no surface defects (such as cracks, sand holes, blow holes) and no internal defects (shrinkage and slag) on the delivered parts.
◉ Common Material for Off Highway Industry parts
We have the ability to manufacture all steel standard materials as well as special materials. The following are our common materials for manufacturing Off Highway Industry Iron Sand Casting Parts:
Carbon Steel:1015,1020,1035,1045,20Mn,25Mn,A570.GrA, SJ355, C45…
Alloy Steel:4130,4135,4140,4340,8620,8640,20CrMo, 42CrMo4, 34CrNiMo6, 25CrMo…
Stainless steel:304, 304L, 316, 316L, 410, 416, CF8, CF8M, PH17-4, CK20…
Gray Iron:GG-15,GG-20,GG-25,Class 20B,Class 25B,Class 30B, GJL-250, GJL-300…
Ductile Iron:GGG-40,GGG-50,60-40-18,65-45-12,70-50-05, 80-55-06 QT500-7, QT400-18, QT700-2…
High Chromium cast iron:15%Cr-Mo-HC,20%Cr-Mo-LC,25%Cr…
Aluminum:AlSi7Mg, AlSi12, AlSi10Mg, A356,A360…
High Manganese steel: X120Mn12, Mn12, Mn13…
5.The Parts We Supplying for the Off Highway Industry
We have manufactured a wide range of Off Highway Industry Iron Sand Casting Parts. The following are typical products:
Coupling components, Centre plates, Bearing brackets, Rail wheels, Wheel hub, Base plate, Axle boxes, Yokes, Pedestals, Hinges, Tie plates, Side jaw clip, and Joint bar.
6. Why Sand Casting
◉ Sand casting is an ancient casting process where the metal parts are molded by pouring metal into a hollow cavity. The mold-based manufacturing process is used to make castings with materials of iron, steel, and Aluminum. Casting-based manufacturing includes several steps and can create a wide range of shapes and sizes for metal products. The process begins with the making of a mold pattern and a gate system with the exact size and shape of the required part. The temperature required depends on the metal as some metals take a long time to heat and melt.
◉ Maple Machinery has continuously upgraded its Sand-casting equipment and refined the casting process. The aim behind this is to use only the advanced casting technology for its Sand-casting operations. Each step follows the customer’s drawings and instructions to deliver precise solutions.
