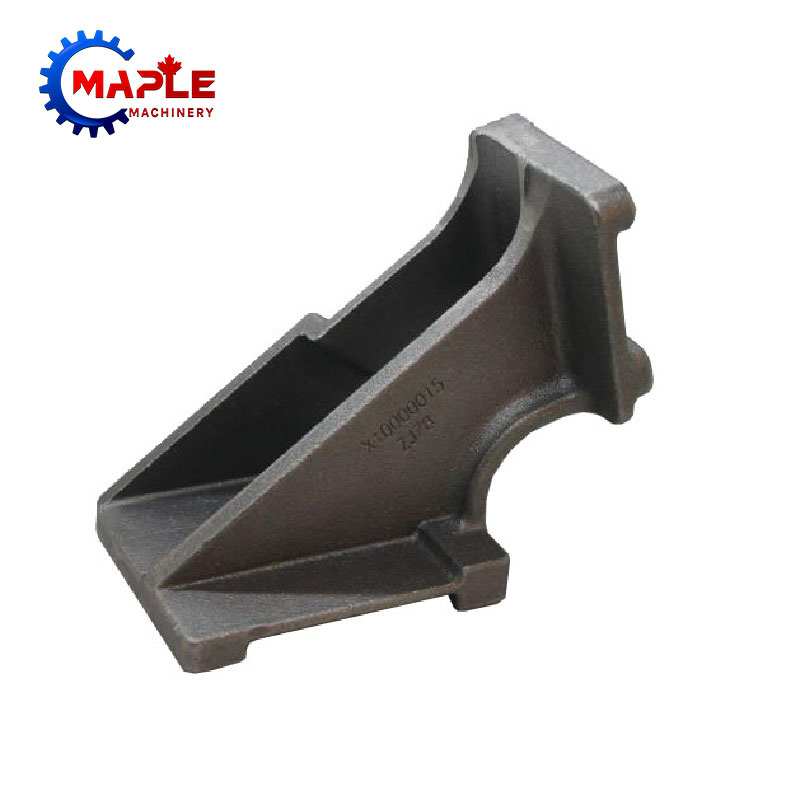

Agricultural Machinery Steel Casting Parts
1.Product Introduction
Agriculture is closely related to our lives and is the oldest industry in the world. The development of agriculture depends on modern technologies and the equipment used for agricultural purposes. The Agricultural Machinery Steel Casting Parts used in agriculture include Brackets, Rototiller tines, Tillage Points, Seed Drills, Chain Sprocket Locust Harrows, Levers, Plough, Pivots, Covers, Clevises, Handles and Latches, Suitcase Weights, Pumps & Valves, and Hardware.
2.Product Parameter (Specification)
Item |
Agricultural Machinery Steel Casting Parts |
Roughness |
Ra 1.6 |
Tolerance |
±0.01mm |
Material |
Casting Steel |
Certification |
ISO 9001:2015 |
Weight |
0.01-2000KG |
Machining |
CNC |
Heat Treatment |
Quenching & Tempering |
Inspection |
MT/UT/X-Ray |
Lead Time |
30 Days |
Package |
Plywood Case |
Method |
Investment Casting |
Capacity |
50000 Pcs / Month |
Origin |
Ningbo, China |
3. Maple’s Servicesfor Agricultural Machinery
◉ Maple Machinery has been making Agricultural Machinery Steel Casting Parts for many years now. We have been producing agricultural machinery and castings for several applications. Our field equipment components, measuring and control devices, valves, and more, are of top quality and cost-effective and carry the highest degree of durability.
◉ We know how to create quality machinery for agricultural purposes that can withstand larger loads and survive harsh environments. The products manufactured by Maple Machinery meet and exceed customer requirements and expectations.
4.Supporting Service for Agricultural Machinery parts
◉ As mentioned above, in order to work in adverse conditions, the performance of the Agricultural Machinery Steel Casting Parts must be excellent. Therefore, it’s not enough to only produce raw castings or forgings, but also need heat treatment, machining, surface treatment, NDT testing, etc.
◉ Heat treatment: heat treatment is the critical step to improve the mechanical properties of the workpiece. We can formulate the process according to the strength requirements of the parts, and improve the mechanical properties of the parts such as hardness, yield strength, tensile strength and elongation by heat treatment
◉ Machining: we have our own machine shop, and can complete almost all machining requirements with advanced equipment.
◉ Surface treatment: the purpose of surface treatment is to make parts work in adverse environment. Zinc plating can prevent parts from rusting; Nickel plating can enhance the wear resistance and corrosion resistance of parts; Phosphating can prevent parts from corrosion…
◉ Non-destructive testing (NDT): NDT is the last and most important step. Maple will NDT the parts to ensure that there are no surface defects (such as cracks, sand holes, blow holes) and no internal defects (shrinkage and slag) on the delivered parts.
◉ Common Material for Agricultural Machinery
We have the ability to manufacture all steel standard materials as well as special materials. The following are our common materials for manufacturing Agricultural Machinery Steel Casting Parts:
Carbon Steel:1015,1020,1035,1045,20Mn,25Mn,A570.GrA, SJ355, C45…
Alloy Steel:4130,4135,4140,4340,8620,8640,20CrMo, 42CrMo4, 34CrNiMo6, 25CrMo…
Stainless steel:304, 304L, 316, 316L, 410, 416, CF8, CF8M, PH17-4, CK20…
Gray Iron:GG-15,GG-20,GG-25,Class 20B,Class 25B,Class 30B, GJL-250, GJL-300…
Ductile Iron:GGG-40,GGG-50,60-40-18,65-45-12,70-50-05, 80-55-06 QT500-7, QT400-18, QT700-2…
High Chromium cast iron:15%Cr-Mo-HC,20%Cr-Mo-LC,25%Cr…
Aluminum:AlSi7Mg, AlSi12, AlSi10Mg, A356,A360…
High Manganese steel: X120Mn12, Mn12, Mn13…
5.The Parts We Supplying for the Agricultural Machinery
We have manufactured a wide range of Agricultural Machinery Steel Casting Parts. The following are typical products:
Brackets, Rototiller tines, Tillage Points, Seed Drills, Chain Sprocket Locust Harrows, Levers, Plough, Pivots, Covers, Clevises, Handles and Latches, Suitcase Weights, Pumps & Valves, and Hardware.
6.Why Investment Casting
◉ Investment casting is a leading process used for the production of high-quality castings and is used to make metal alloys. The key advantage of the investment casting process is that it can help to cast metals with high melting temperatures and create parts with complex geometry that are much needed in industries like aircraft, automotive, and military.
◉ As professional investment casting manufacturer, our specialized technique is widely applied to get heavier, stronger, and complex shapes for investment castings. When you trade with us, you get several benefits such as lower costs, a cheaper molding process for complex designs, and higher accuracy. Another competitive benefit enjoyed by Maple Machinery is its leading position in China for casting technology. We will provide precision castings and micron-level processing services.
