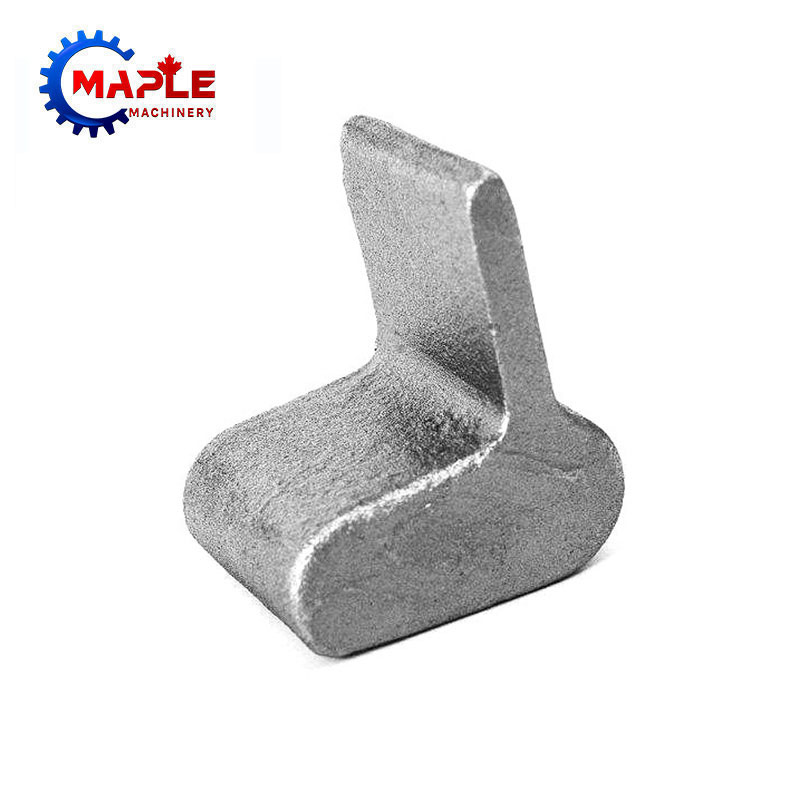

Marine Grey Iron Casting Parts

To achieve our development goals, Maple machinery continuously invests in the development of our people, processes and machines. Investment and innovation ensure a perfect match between the fascinating craftsmanship of Marine Grey Iron Casting Parts and the needs of today's and tomorrow's world. As a result of constant internal development and our pursuit of perfection, we are recognized as one of the top founders in the world. We are a clear leader in the technology applied in foundries and machine shops, and we are very proud of this achievement.

Send Inquiry

Product Description

Gray cast iron is characterized by uneven graphite sheet orientation, large material brittleness and poor ductility. It is widely used in Marine Grey Iron Casting Parts of engine block, brake disc, brake drum and housing. Grey cast iron has excellent workability, excellent wear resistance and damping properties.

Product Parameter (Specification)

Item	Marine Grey Iron Casting Parts	Roughness	Ra 1.6
Tolerance	±0.01mm	Material	Casting Steel/Casting Iron
Certification	ISO 9001:2015	Weight	0.01-5000KG
Machining	CNC	Heat Treatment	Quenching & Tempering
Inspection	MT/UT/X-Ray	Lead Time	30 Days
Package	Plywood Case	Method	Sand Casting
Capacity	50000 Pcs / Month	Origin	Ningbo, China

Maple’s Service for Mining Industry

Maple machinery has been designing and producing grey cast iron parts for short, medium and long production runs. Since its inception, Maple machinery has pursued a vertically integrated policy, focusing on mastering the underlying technologies that make up its core business. Based on this principle of industrial autonomy, the foundry is ultra-modern and accommodates large industrial facilities that are constantly evolving to guarantee its continuous development. The foundry specialises in sheet Grey cast Iron and currently has a production capacity of 19,000 tonnes with its expertise and trade expertise in material and/or machined Parts for Marine Grey Iron Casting Parts..

Supporting Service for Mining Components

◉ As mentioned above, in order to work in adverse conditions, the performance of the Civil Marine Grey Iron Casting Parts must be excellent. Therefore, it’s not enough to only produce raw castings or forgings, but also need heat treatment, machining, surface treatment, NDT testing, etc.

◉ Heat treatment: heat treatment is the critical step to improve the mechanical properties of the workpiece. We can formulate the process according to the strength requirements of the parts, and improve the mechanical properties of the parts such as hardness, yield strength, tensile strength and elongation by heat treatment

◉ Machining: we have our own machine shop, and can complete almost all machining requirements with advanced equipment.

◉ Surface treatment: the purpose of surface treatment is to make parts work in adverse environment. Zinc plating can prevent parts from rusting; Nickel plating can enhance the wear resistance and corrosion resistance of parts; Phosphating can prevent parts from corrosion…

◉ Non-destructive testing (NDT): NDT is the last and most important step. Maple will NDT the parts to ensure that there are no surface defects (such as cracks, sand holes, blow holes) and no internal defects (shrinkage and slag) on the delivered parts.

Common Material for Mining Industry

We have the ability to manufacture all steel standard materials as well as special materials. The following are our common materials for manufacturing Marine Grey Iron Casting Parts:

Carbon Steel：1015, 1020, 1035, 1045, 20Mn, 25Mn, A570.GrA, SJ355, C45…

Alloy Steel：4130, 4135, 4140, 4340, 8620, 8640, 20CrMo, 42CrMo4, 34CrNiMo6, 25CrMo…

Stainless steel：304, 304L, 316, 316L, 410, 416, CF8, CF8M, PH17-4, CK20…

Gray Iron：GG-15, GG-20, GG-25, Class 20B, Class 25B, Class 30B, GJL-250, GJL-300…

Ductile Iron：GGG-40, GGG-50, 60-40-18, 65-45-12, 70-50-05, 80-55-06 QT500-7, QT400-18, QT700-2…

High Chromium cast iron：15%Cr-Mo-HC, 20%Cr-Mo-LC, 25%Cr…

Aluminum：AlSi7Mg, AlSi12, AlSi10Mg, A356, A360…

High Manganese steel: X120Mn12, Mn12, Mn13…

The Parts We Supplying for The Mining Industry

We have manufactured a wide range of Marine Grey Iron Casting Parts. The following are typical products:Ground engaging tools: drill bits, carbide tipped tool, forged bucket tooth, auger....

Why Sand Casting

Sand casting is an ancient casting process where the metal parts are molded by pouring metal into a hollow cavity. The mold-based manufacturing process is used to make castings with materials of iron, steel, and Aluminum. Casting-based manufacturing includes several steps and can create a wide range of shapes and sizes for metal products. The process begins with the making of a mold pattern and a gate system with the exact size and shape of the required part. The temperature required depends on the metal as some metals take a long time to heat and melt.

Maple Machinery has continuously upgraded its Sand-casting equipment and refined the casting process. The aim behind this is to use only the advanced casting technology for its Sand-casting operations. Each step follows the customer’s drawings and instructions to deliver precise solutions.
